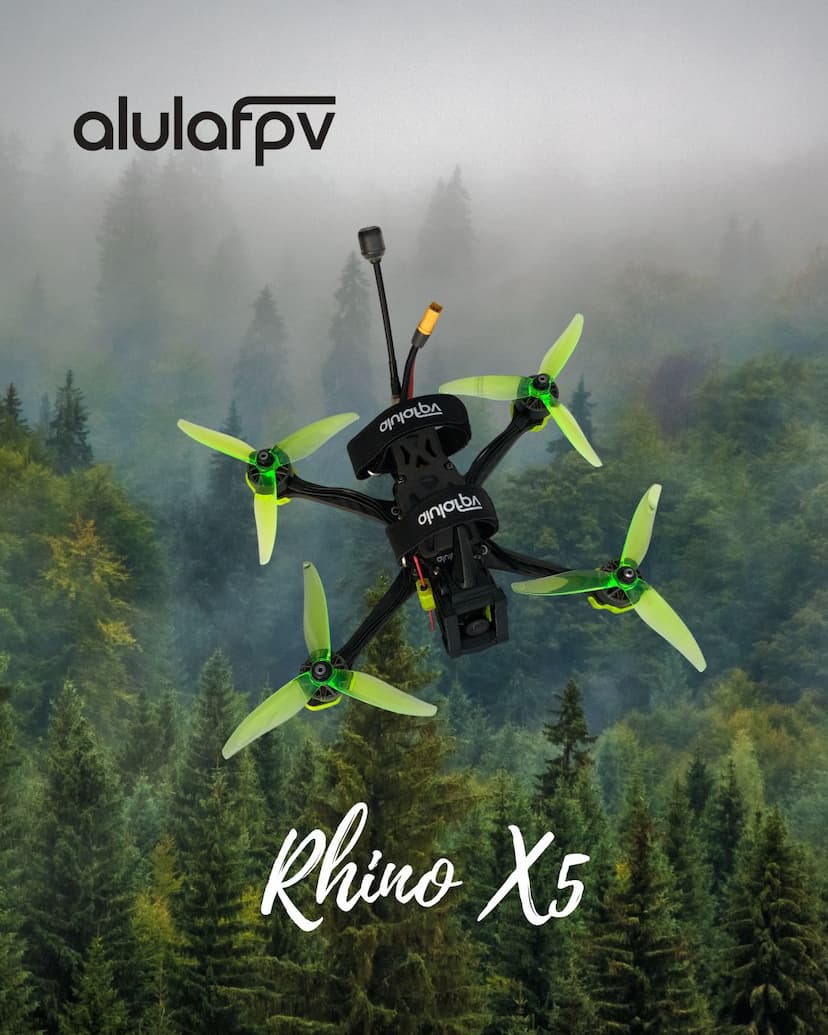

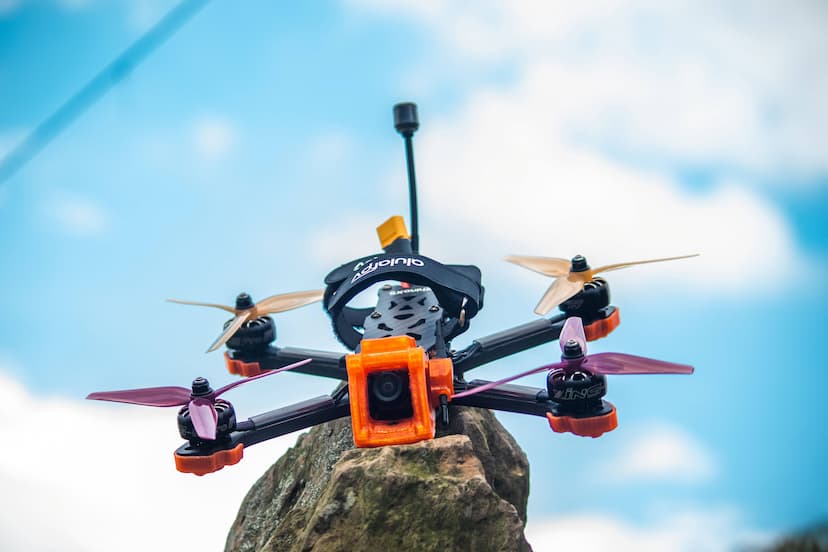

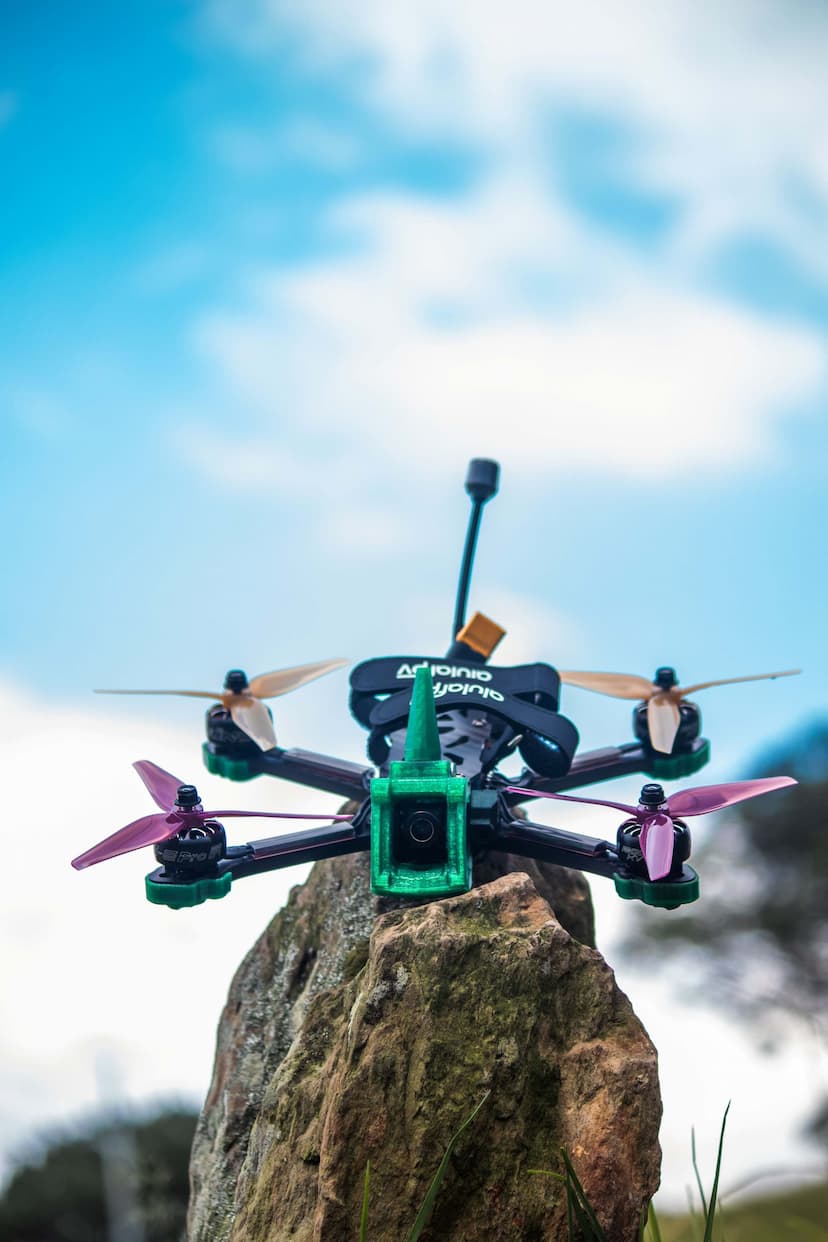

AlulaFPV Rhino X5

AlulaFPV Rhino X5

Select Variant:

No variant selected

Quantity:

1
N/A

Key Features

  • Heavy-Duty 6.0mm Carbon Fiber Arms
  • Balanced 223mm Wheelbase Geometry
  • Dual FC Mounting (20x20mm & 30.5x30.5mm)
  • Universal VTX Compatibility (20x20, 25.5x25.5, & 30.5x30.5)
  • Adjustable 19mm/20mm Camera Space
  • Reinforced 2.0mm Multi-Layer Plate Construction
  • M3 16x16mm Motor Mounting Pattern

Technical Specifications

  • Model: Alulafpv-Rhino-X5
  • Wheelbase: 223mm
  • Arm Thickness: 6.0mm
  • Top Plate Thickness: 2.5mm
  • Middle Plate Thickness: 2.0mm
  • Bottom Plate Thickness:2.5mm
  • FC Mounting: 20x20mm / 30.5x30.5mm
  • VTX Mounting: 20x20mm / 25.5x25.5mm / 30.5x30.5mm
  • Motor Mounting: 16x16mm (M3)
  • Camera Space: 19mm / 20mm
  • Weight: 185.6g (±2g)



Motor : 2207/1800kv

Fc stack : F405,60A

Receiver : ELRS

VTX : Cyclone 1W

Camera : Ratel 2 pro

Package Includes

  • 1 x Alulafpv-Rhino-X5 Carbon Fiber Frame Kit
  • 1 x Complete Hardware & Standoff Set
  • 1 x Battery Silicone Anti-slip Pad
  • 1 x Rhino-X Series Sticker Pack
  • 1 x propeller
  • 1x antennas

  • 2 x battery straps (M*20 X M*260 )
