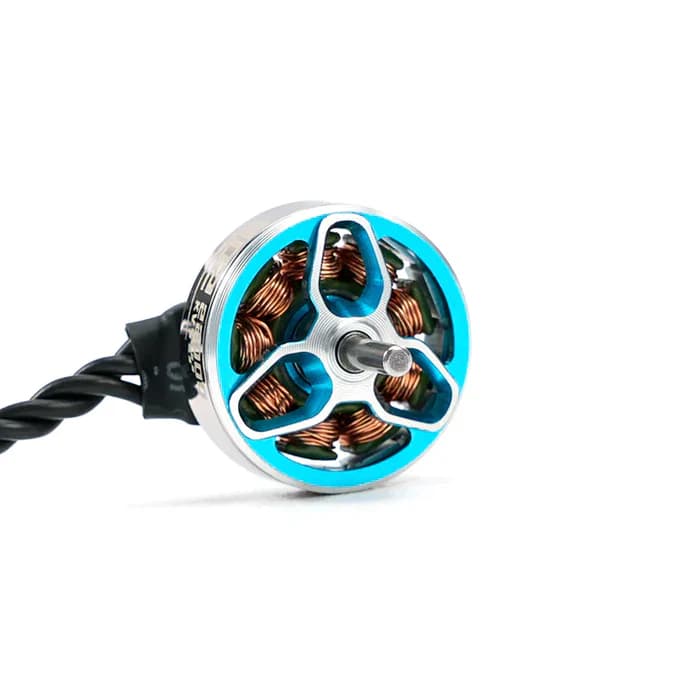

BetaFpv 1102 Brushless Motors (1pc)

BetaFpv 1102 Brushless Motors

Select Variant:

No variant selected

Quantity:

1
N/A

Technical Specifications

  • KV (rpm/V): 18000KV / 22000KV

  • Input Voltage: 1S LiPo

  • Weight: 2.95g/pc (18000KV) | 2.79g/pc (22000KV)

  • Shaft Diameter: 1.5mm

  • Shaft Length: 5mm

  • Motor Mount Holes: 3-M1.4 on Φ6.6mm circle

  • Cables: 28AWG with Micro JST-1.25 3-pin connector

  • Height: 13.6mm (2022 Version) / 15.2mm (Classic)

Recommended Setup

  • Frame: Meteor75 / Meteor75 Pro

  • Propellers: 40mm 3-Blade (for 75mm) / 45mm (for 75mm Pro)

  • Battery: BT2.0 450mAh 1S / 550mAh 1S

  • Flight Controller: F4 1S 5A AIO / F4 1S 12A AIO

Package Includes

  • 1 x BETAFPV 1102 Brushless Motors

  • 1 x Pack of M1.4*4 Mounting Screws
