Betafpv ELRS 915MHZ Nano Receiver-120mm

ELRS 915MHZ Receiver-120mm

Select Variant:

No variant selected

Quantity:

1
N/A

echnical Specifications

  • Frequency Band: 915MHz FCC

  • Refresh Rate: 25Hz - 200Hz

  • Input Voltage: 5V DC

  • Telemetry Power: 100mW (20dBm)

  • RF Chip: Semtech SX1276 + PA + LNA

  • MCU: ESP8285

  • Antenna Connector: IPEX MHF1 (u.FL)

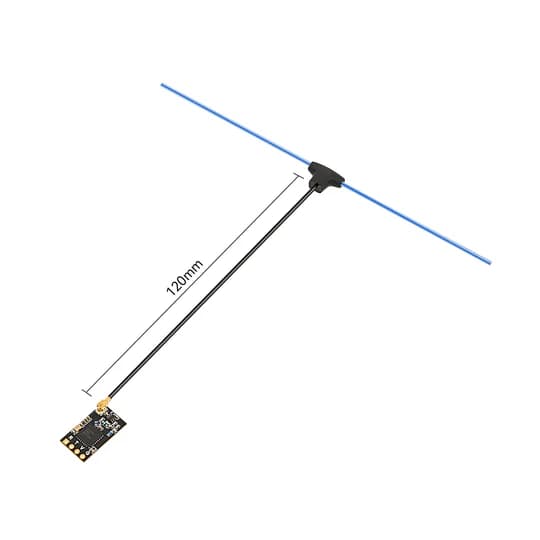

  • Antenna Length: 120mm

  • Weight: 0.7g (Receiver only)

  • Dimensions: 12mm x 19mm

Package Includes

  • 1 x BETAFPV ELRS Nano Receiver (915MHz)

  • 1 x 120mm BETAFPV T-Antenna

  • 1 x 1x4 Pin Header

  • 4 x 30AWG Silicone Wires (Black, Red, White, Yellow)

  • 2 x Spare Heat Shrink Tubes

  • 1 x User Manual
