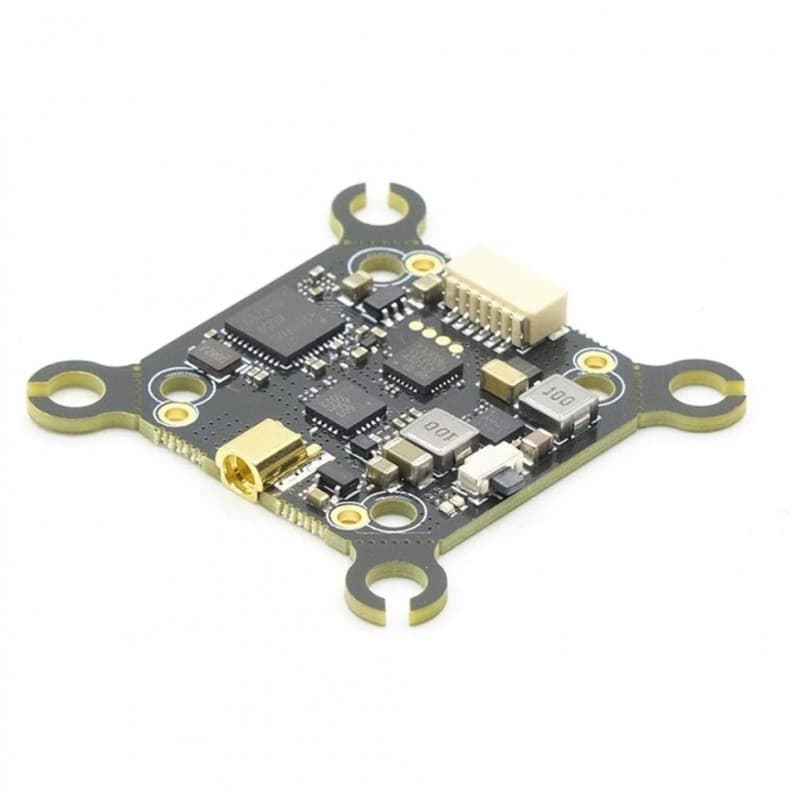

Cyclone VTX

Cyclone vtx

Select Variant:

No variant selected

Quantity:

1
N/A

Technical Specifications

  • Model: Cyclone XF5804 Pro / 5.8G VTX

  • Frequency: 5.8GHz

  • Channels: 48 CH (including Raceband)

  • Input Voltage: 7V – 24V (2-6S LiPo)

  • Output Power: 25mW / 200mW / 400mW / 600mW (Switchable)

  • Camera Supply: 5V Output (Max 300mA)

  • Connector Type: MMCX

  • Mounting Holes: 30.5mm x 30.5mm or 20mm X20mm

  • Weight: 6g (excluding antenna)

Package Includes

  • 1 x Cyclone 5.8G 40CH Video Transmitter

  • 1 x 6-Pin Silicone Connection Wiring Harness

  • 1 x Linear Brass Antenna
