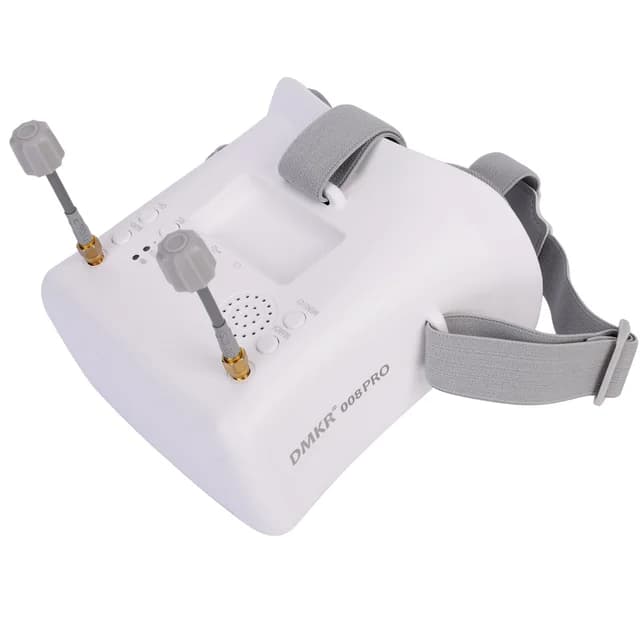

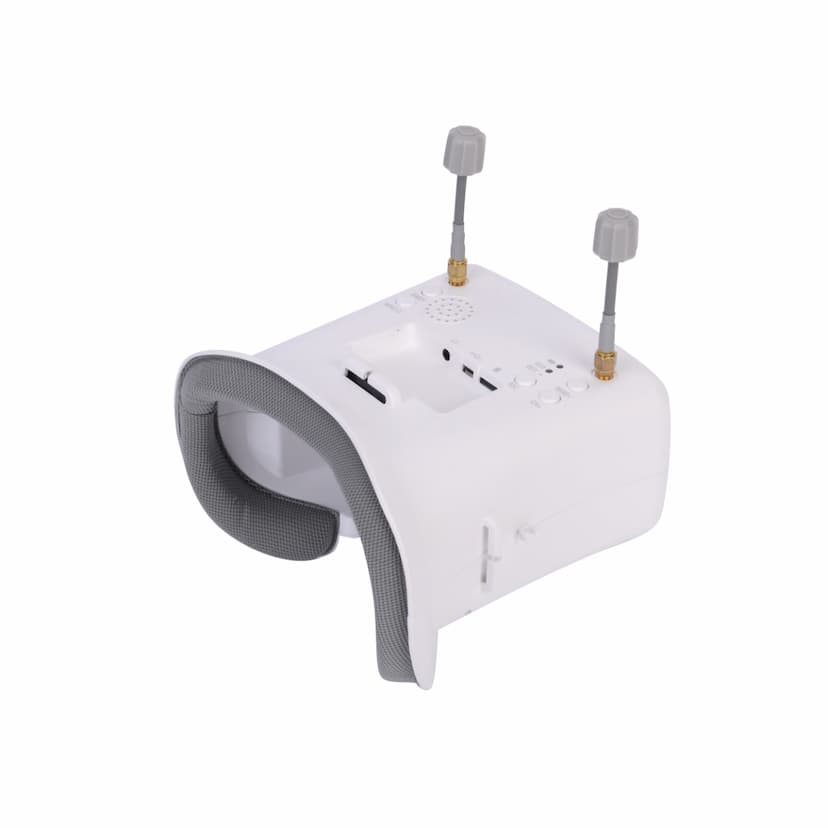

DMKR 008D Pro Analog Fpv Goggles

fpv googles

Select Variant:

No variant selected

Quantity:

1
N/A

Key Features

  • The 4.3-inch screen can be detached and used as a small standalone monitor on a radio controller or tripod.

  •  Features a specially tuned 4.3-inch LCD with a high-brightness backlight for clear visibility during outdoor FPV sessions.

  •  Built-in super-sensitive 5.8GHz 40-channel receiver, including RaceBand, for stable signal reception.

  •  Supports one-key video recording to a TF card (up to 32GB) for capturing your flight footage in real-time.

  •  One-press frequency scanning that identifies and displays the active working frequency on the screen.

  •  Lightweight design with a three-way adjustable headband and ergonomic face foam for long-term comfort.

  •  Real-time video return with a time delay of less than 20ms for precise racing and flight control.

Technical Specifications

  • Model: 008D Pro

  • Screen Size: 4.3 Inch IPS LCD

  • Resolution: 800 x 480 px (no blur after magnification)

  • Brightness: 300cd/m² with high-brightness backlight LED

  • Lens: 2.8x Fresnel Lens (92% transparent rate, no distortion)

  • Antenna Connector: 2 x RP-SMA Male

  • Battery: Built-in 3.7V / 2000mAh High-capacity Polymer

  • Working Time: approx. 2.5 hours (DVR On) / 3.5 hours (DVR Off)

  • Charging: USB DC 5V / 2A Interface

  • Video Format: NTSC / PAL Auto-Switching

  • Weight: 300g (without antennas)

  • Dimensions: 155 x 144 x 113mm

Package Includes

  • 1 x DMKR 008D Pro FPV Goggles

  • 2 x 5.8GHz Antennas (RP-SMA)

  • 1 x USB Charging Cable

  • 1 x AV Cable

  • 1 x Adjustable Headband

  • 1 x Carrying Case (Depending on batch)

  • 1 x User Manual
