DMKR FPV Monitor

DMKR 3-inch fpv monitor

Select Variant:

No variant selected

Quantity:

1
N/A
● Small size and light lightweight power consumption, Working current 360~400mA;
● RaceBand 40 channel, Auto-Searching;
● 3.0 Inch 480*320 dot high brightness LCD screen;
● Built-in super sensitiveness 5.8GHz 40ch receiver, especially with RaceBand;
● Built-in 3.7V/800mAh high-capacity Li-ion polymer Battery;
● Universal USB charging interface;
● Real-time video return, Very low time-delay;
● Bilingual menu in support of Chinese and English;
● Support external video signal input;
● Support AV signal output (Connect external DVR);
● It can be used as a receiver for "DJI" and other video glasses. With interest screen function.


Technical Specifications

  • Model: LS-5804

  • Screen Size: 3.0 Inch LCD

  • Resolution: 480 x 320 px

  • Display Ratio: 16:9

  • Brightness: 500cd/m² (High-brightness LED)

  • Frequency: 5.8GHz 40CH (including RaceBand)

  • Antenna Connector: RP-SMA Male

  • Battery: Built-in 3.7V / 800mAh Li-ion Polymer

  • Battery Life: Approximately 2 hours of continuous use

  • Working Voltage: DC 5V / 1A (USB Interface)

  • Video Delay: < 20ms

  • Weight: 65g (without antenna)

  • Dimensions: 83.5 x 52 x 13.3 mm

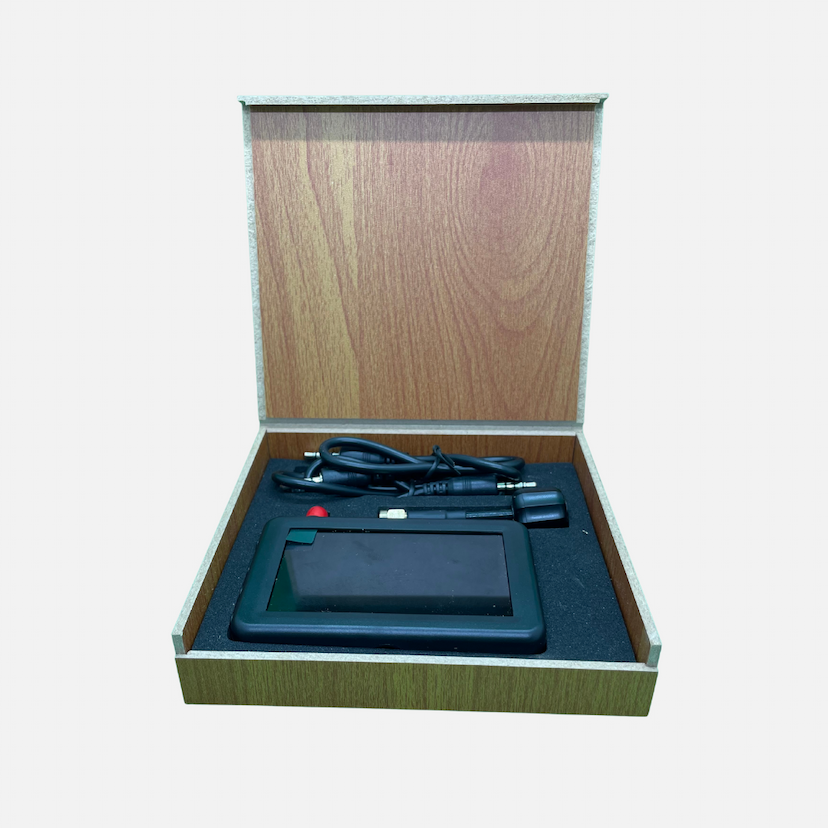

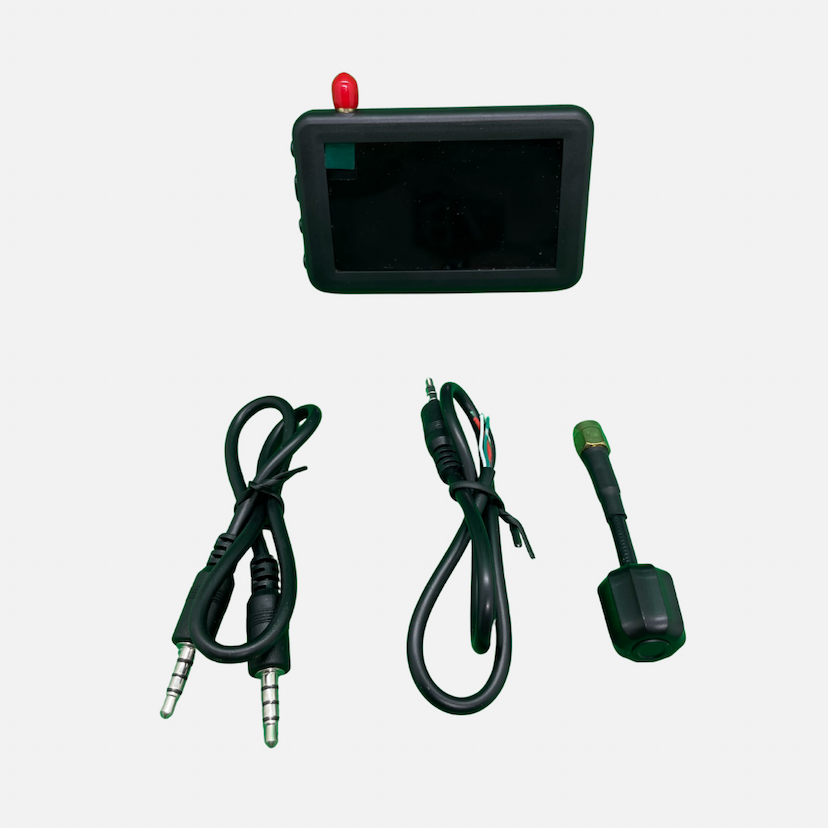

Package Includes

  • 1 x DMKR LS-5804 3" Mini FPV Monitor

  • 1 x RP-SMA Antenna (Male)

  • 1 x USB Charging Cable

  • 1 x Aux Cable (Male to Male)

  • 1 x Aux Cable (Male to Open Wire)

  • 1 x User Manual
