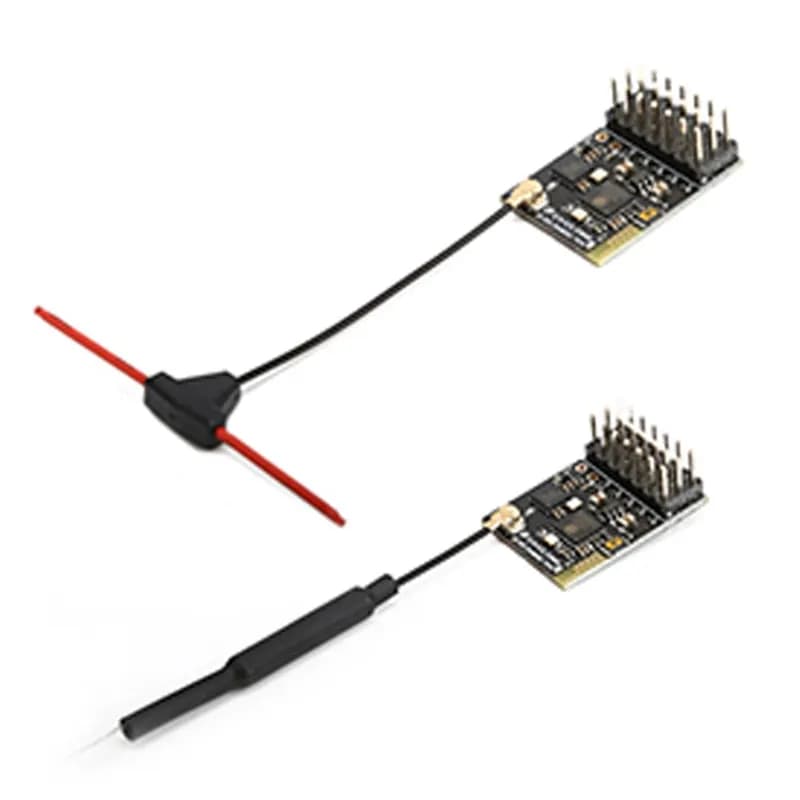

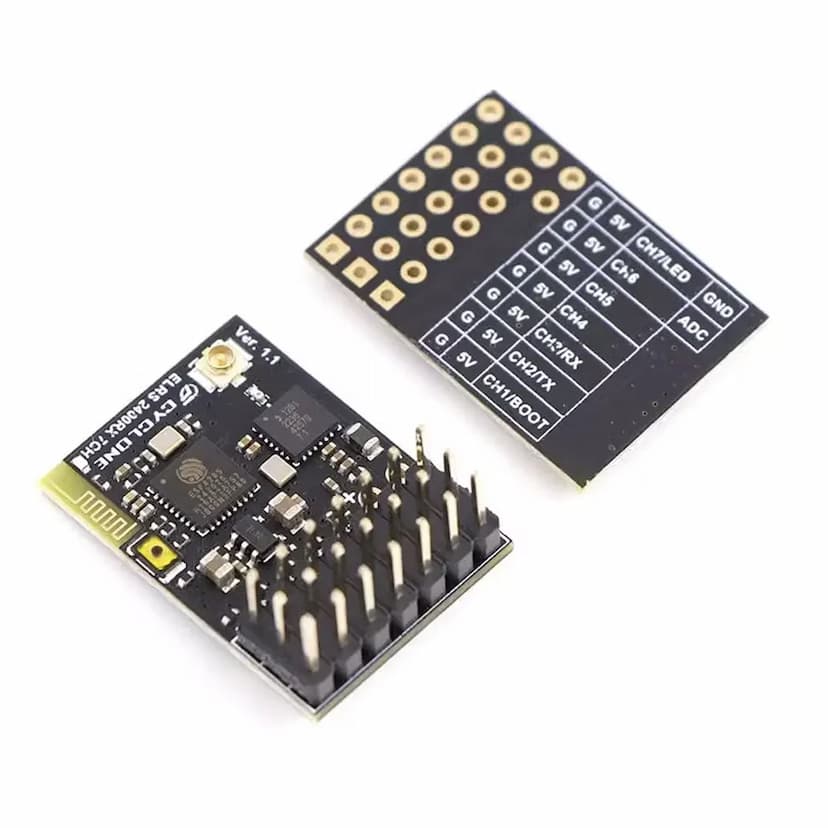

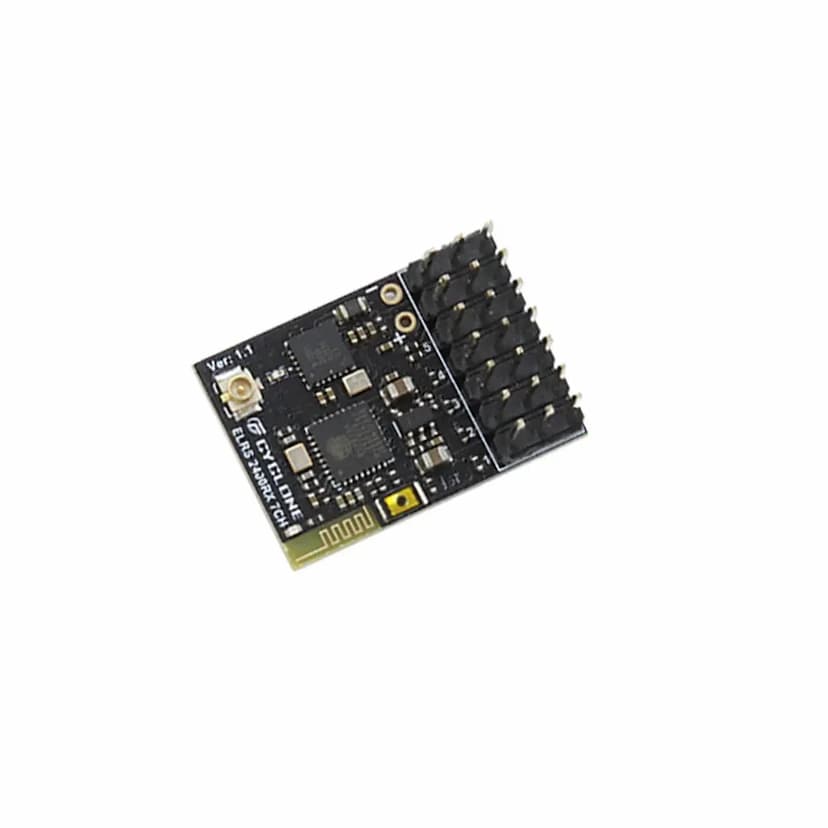

ELRS 2.4G 7 Channel PWM

ELRS 2.4G 7 Channel PWM

Select Variant:

No variant selected

Quantity:

1
N/A

Technical Specifications

  • Microcontroller: ESP8285

  • RF Chip: SX1281

  • Frequency Range: 2.4GHz ISM (2400MHz - 2480MHz)

  • Antenna Connector: U.FL (MHF1)

  • PWM Frequency: 50Hz to 400Hz (Configurable)

  • Input Voltage (5V Pad): 3.5V – 9.0V DC

  • Telemetry Power: 12dBm

  • Dimensions: 27mm x 16mm

  • Weight: 5.0g (Including antenna and pins)

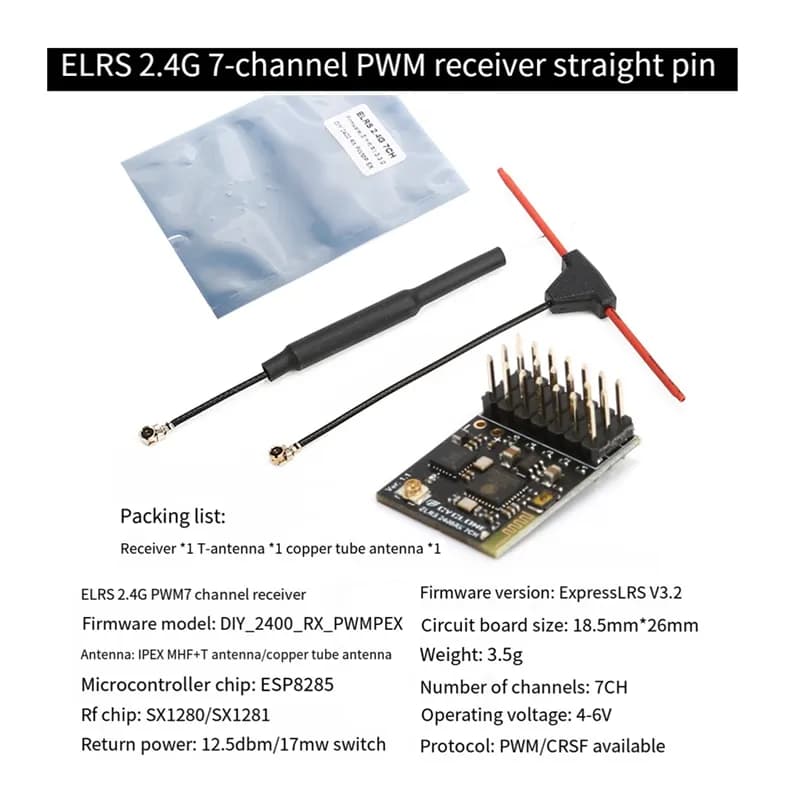

Package Includes

  • 1 x Cyclone ELRS 2.4G 7CH PWM / CRSF Receiver

  • 1 x High-Sensitivity U.FL Antenna

  • 1 x Voltage Telemetry Wire
