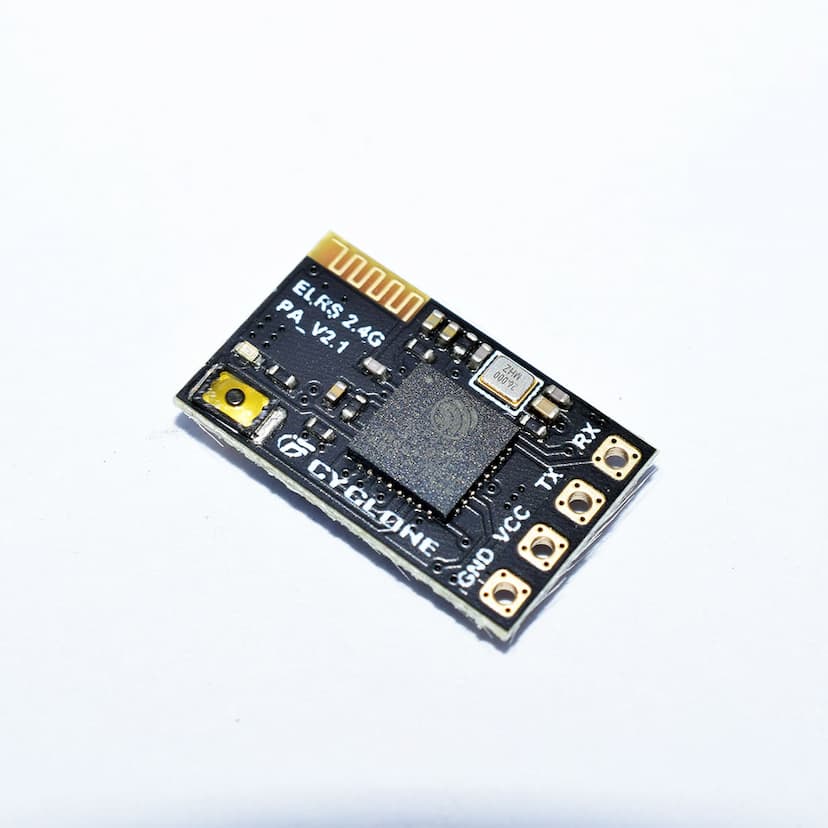

ELRS Nano 2400 RX

Technical Specifications

• Model: Cyclone Nano 2400RX

• Type: 2.4GHz ISM (ESP8285 Processor)

• Frequency Range: 2400 MHz to 2500 MHz

• Maximum Refresh Rate: 500Hz

• Minimum Refresh Rate: 25Hz

• Telemetry Output Power: 100mW

• Input Voltage: 4.5V – 5.5V

• Antenna Connector: IPEX1 (u.FL)

• Dimensions: 11mm x 18mm x 3mm

• Weight: 0.65g (Board only) / ~3g (With T-Antenna)

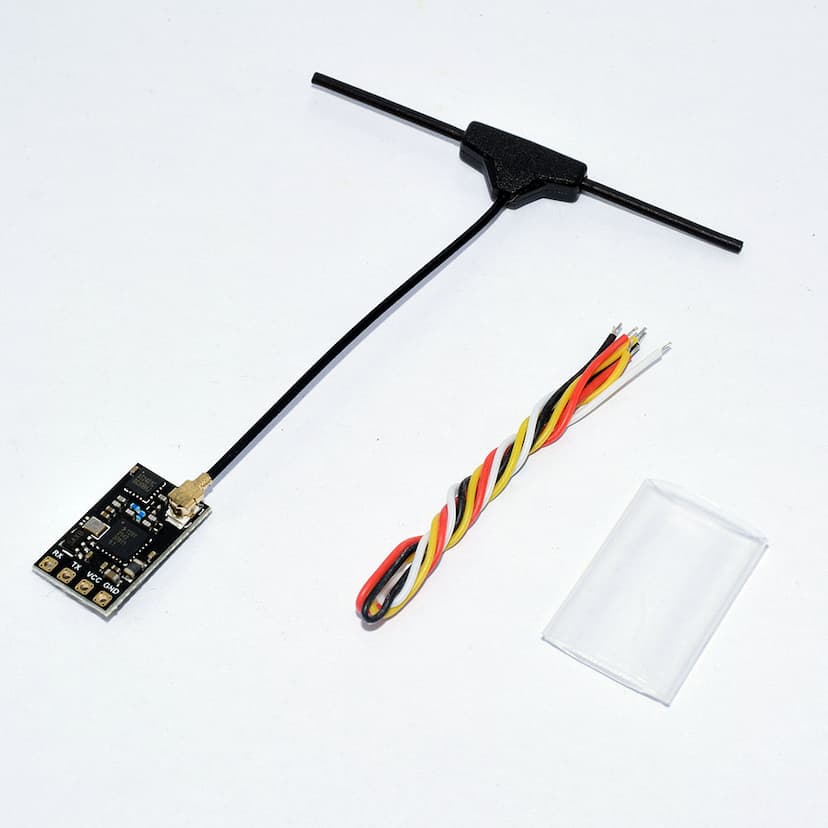

Package Includes

• 1 x Cyclone Nano 2400RX Receiver

• 1 x  T-Type Antenna (IPEX1)

• 4 x 30AWG Silicone Connection Wires (Black, Red, White, Yellow)

• 1 x Heat Shrink Tube
