Hakrc Flight Controller stack
Hakrc Flight Controller stack
Select Variant:
Price:
NPR 10,999
Subtotal
1 x NPR 10,999
NPR 10,999
Sold Out
Quantity:
1

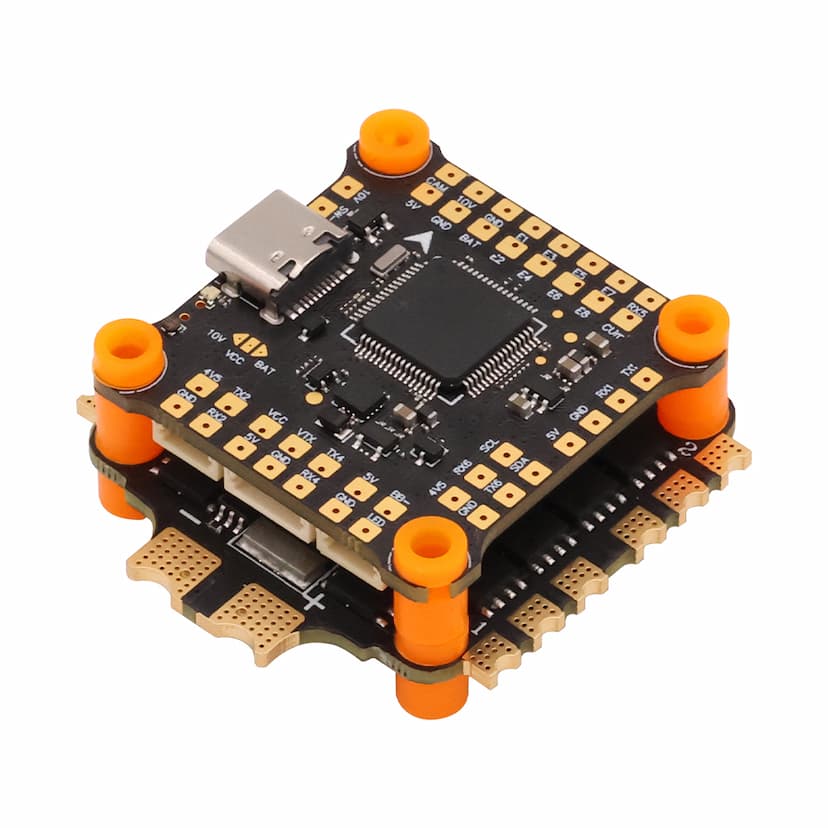

Hakrc 65A Flight Controller Stack
HAKRC F405 V2 Flight Controller
The V2 flight controller is designed with a dual BEC system to handle both standard electronics and high-power video systems (like DJI O3).
| Feature | Specification |
|---|---|
| MCU | STM32F405RET6 |
| IMU (Gyro) | ICM42688 (High stability) |
| OSD | AT7456E |
| Input Voltage | 2S - 6S LiPo |
| BEC Outputs | 5V/3A and 10V/2.5A (Standard) |
| Blackbox | 16MB Onboard Flash |
| Barometer | Integrated |
| UARTs | 5-6 Serial Ports |
| Firmware | HAKRCF405V2 |
| USB Type | Type-C |
HAKRC 65A 4-in-1 ESC (BLHeli_32)
This ESC is built with an 8-layer PCB and thickened copper for better heat dissipation and high current throughput.
| Feature | Specification |
|---|---|
| Continuous Current | 65A |
| Peak Current | 70A - 75A (10s) |
| Input Voltage | 2S - 8S LiPo (Some versions capped at 6S) |
| Firmware | BLHeli_32 (Supports Bidirectional DShot & RPM Filtering) |
| Processor | AT32F421 (128MHz) |
| Protocols | DShot150/300/600/1200, MultiShot, OneShot, PWM |
| Current Sensor | Integrated (Scale: 90 or 160 depending on version) |
Package Contents
Standard kits usually include:
- 1x HAKRC F405 V2 Flight Controller
- 1x HAKRC 65A 4-in-1 ESC
- 1x 8-Pin SH1.0 Link Cable (FC to ESC)
- 1x High-frequency Low-ESR Capacitor (typically 35V 470uF or 1000uF)
- 1x XT60 Power Cable (12AWG/14AWG)
- Anti-vibration silicon grommets and mounting hardware (M3 screws/nuts)
