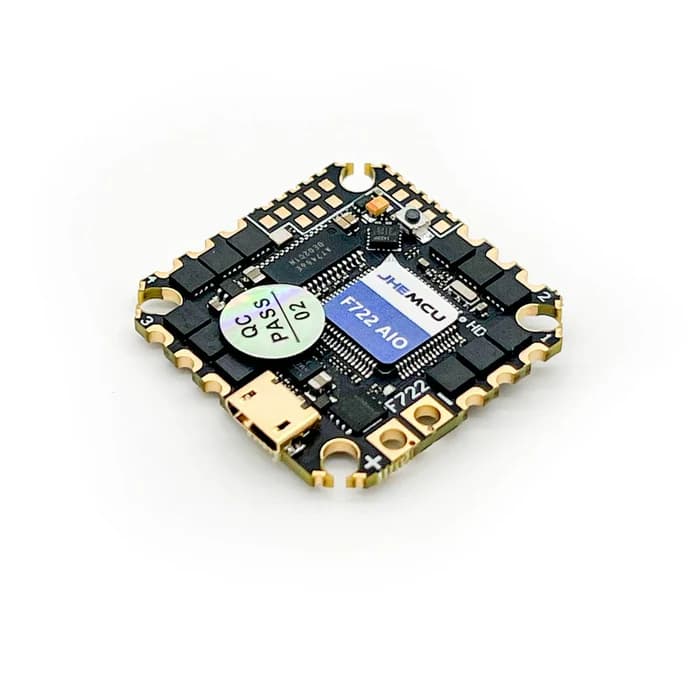

JHEMCU F722 AIO 40A Flight Controller

AIO Flight Controller /ESC 40A - 25.5 x 25.5mm

Select Variant:

No variant selected

Quantity:

1
N/A

Specifications

  • Model: GHF722AIO-HD ESC-40A
  • Item Name: JHEMCU GHF722AIO- HD 40A F722 Flight Controller STM32F722 W/5V 10V BEC Gebaut-in 40A BLHELI_S 2-6S 4in1 ESC for FPV Racing Drone
  • Dimensions: 33.5mm x 33.5mm
  • CPU: STM32F722
  • Mounting Hole: 25.5x25.5mm
  • Weight: 7.8g
  • Gyro: ICM
  • USB: MicroUSB and Included TYPE-C w/ Adapter Board
  • Firmware: JHEF7DUAL, Betaflight 4.3.0+ Required
  • Black box: 16MB

ESC Specifications

  • Con. Current: 40A
  • Burst Current: 50A
  • Input Voltage: 2-6S Lipo
  • Firmware: BLHELI_S/BluJay
  • Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600

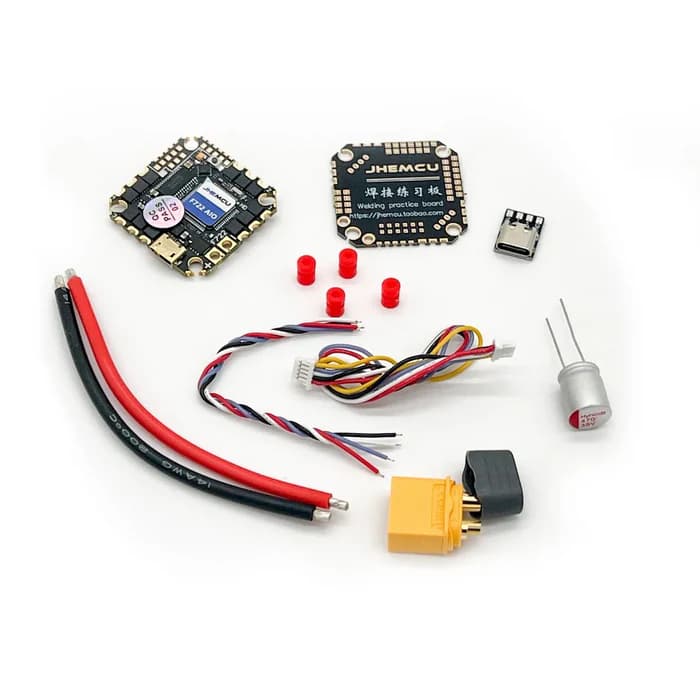

Includes

  • 1 x JHEMCU GHF722AIO-HD Board
  • 1 x 14AWG Red Cable
  • 1 x 14AWG Black Cable
  • 1 x 470UF 35V Capacitor
  • 4 x M2 Rubber Shock Absorber
  • 1 x XT60H Plug
  • 1 x USB-C Module
  • 1 x Solder Practice Board
