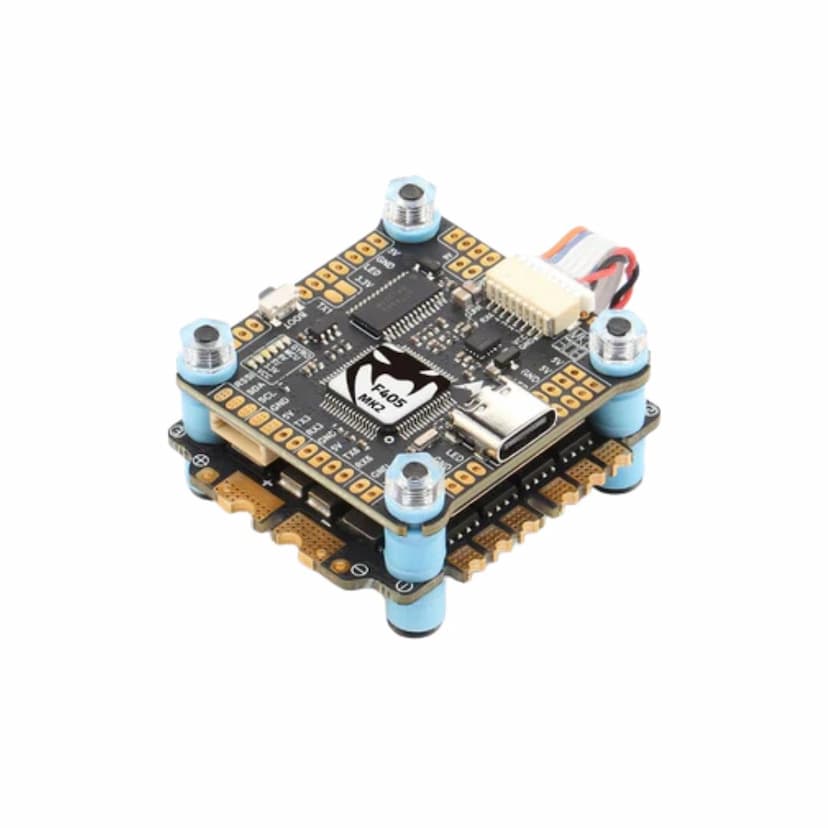

MAMBA F405MK2 V2 STACK

MAMBA F405MK2 V2 STACK flight controller

Select Variant:

No variant selected

Quantity:

1
N/A

Features

  •   Improved gyro
  • High-end 6S power
  • Digital ready
  • Protection
  • Modern USB
  • LED compatibility



Technical Specifications

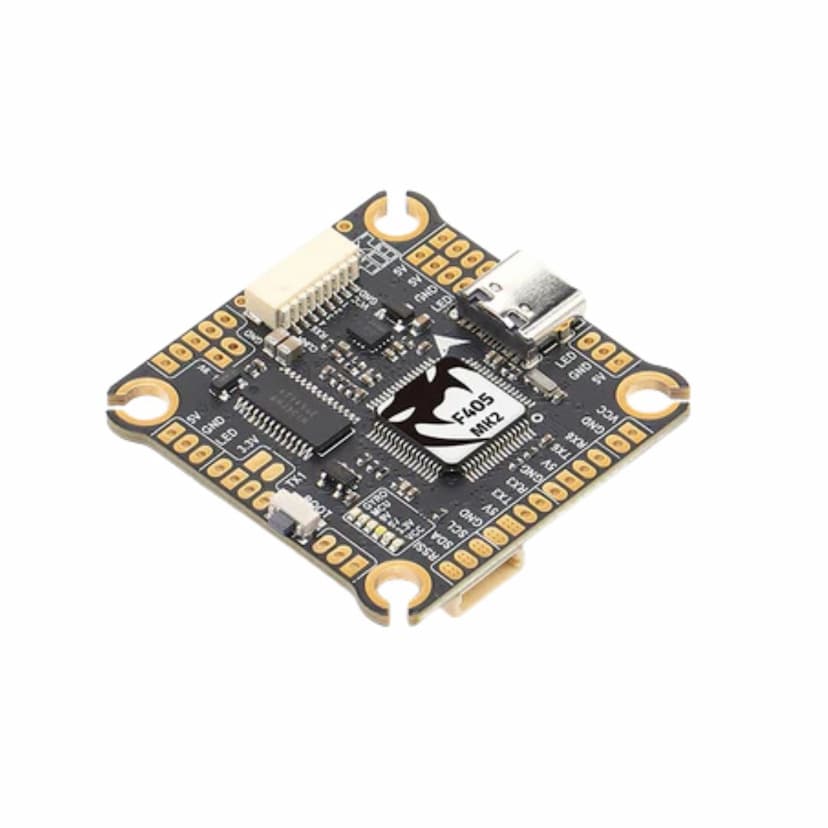

MAMBA F405 MK2 V2 Flight Controller

  • MCU: STM32F405RGT6 (168MHz)

  • IMU (Gyro): MPU6000 or ICM42688 (Depending on batch)

  • OSD: AT7456E

  • Blackbox: 16MB Flash Memory

  • UARTs: 3 Sets

  • BEC: 5V / 2A

  • Input Voltage: 3S - 6S LiPo (12.6V - 25.2V)

  • Target: MAMBA F405US

  • Mounting: 30.5mm × 30.5mm, M3

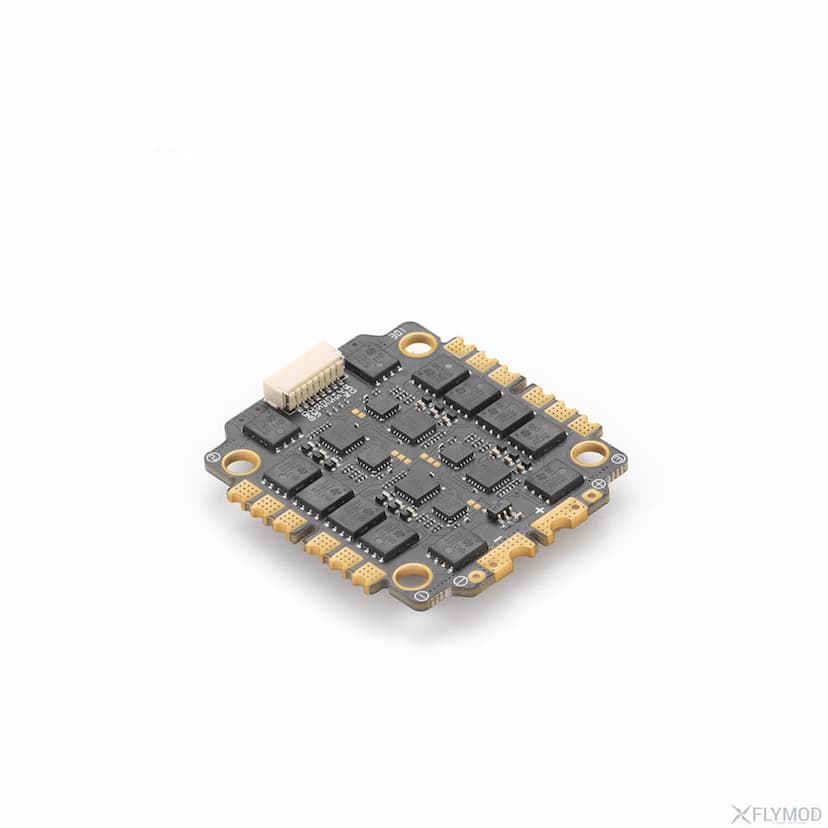

MAMBA F50 / 50A BLHeli_S ESC

  • Continuous Current: 50A × 4

  • Burst Current: 60A (10s)

  • Input Voltage: 3S - 6S LiPo

  • Firmware: BLHeli_S (CH40)

  • Protocol Support: DShot300/600

  • Current Sensor: Yes (Scale: 225)

  • BEC: No (Powered by FC)

Package Includes

  • 1 x MAMBA F405 MK2 V2 Flight Controller

  • 1 x MAMBA F50 50A 3-6S ESC

  • 1 x 8-pin SH1.0 ESC-to-FC Cable

  • 1 x AMASS Original XT60 Connector with 12AWG Wires

  • 1 x High-Frequency 470uF/35V Capacitor

  • 1 x Set of M3 Anti-vibration Rubber Grommets

  • 1 x Hardware Mounting Pack (Screws and Nuts)
