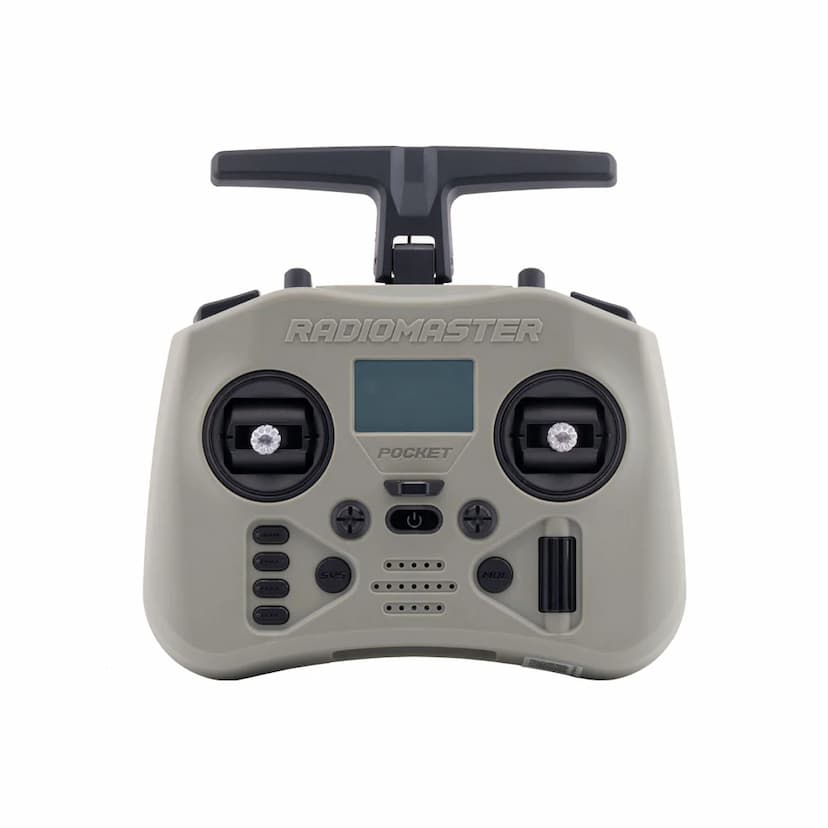

Radiomaster Pocket controller ELRS

Radiomaster Pocket controller

Select Variant:

No variant selected

Quantity:

1
N/A

Features

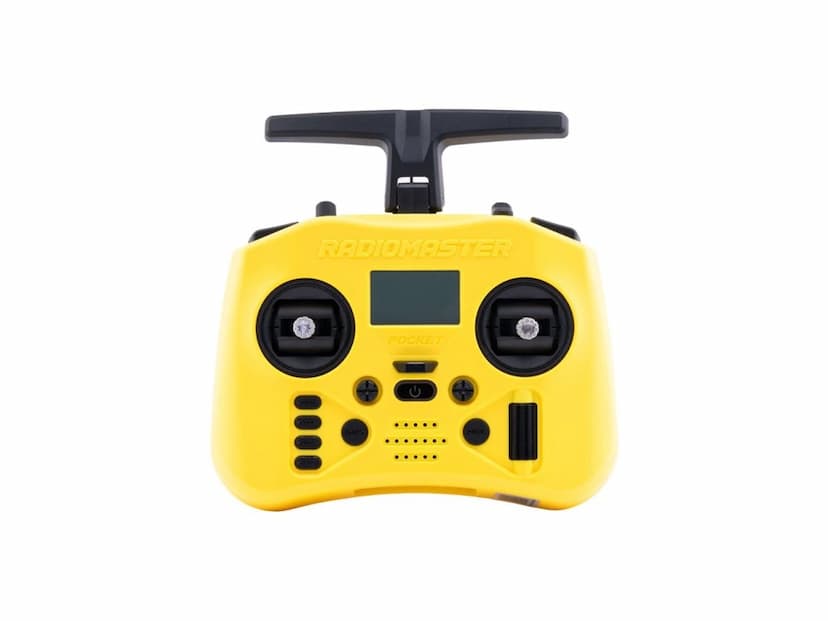

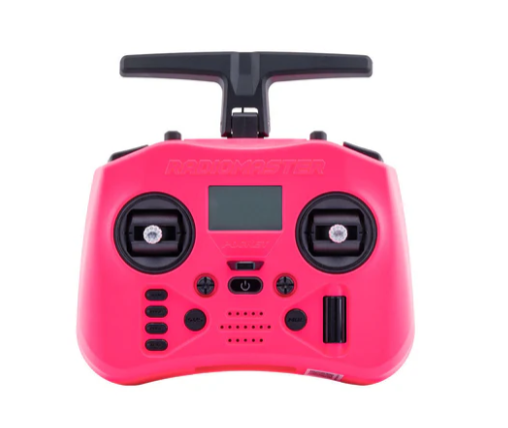

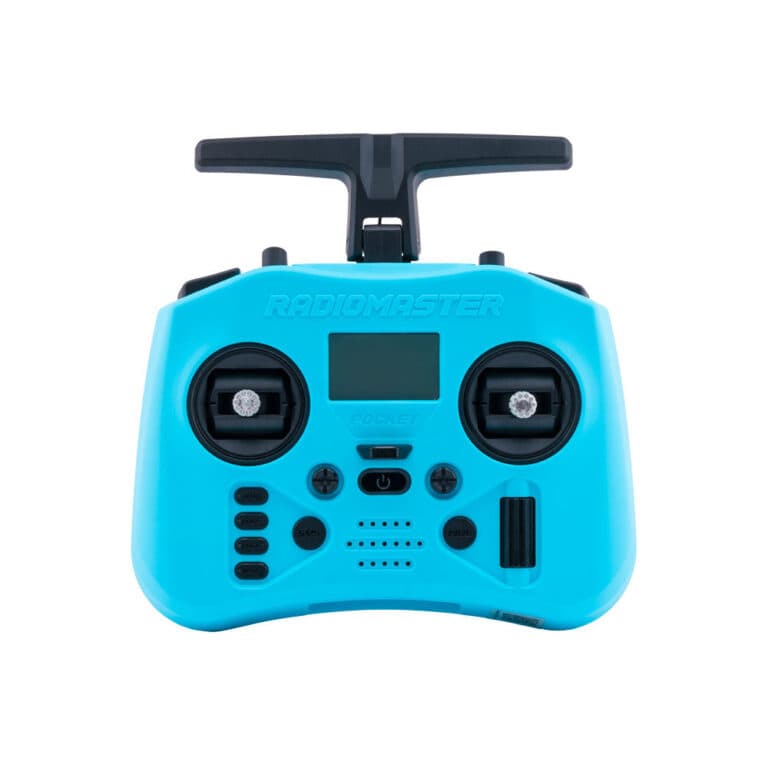

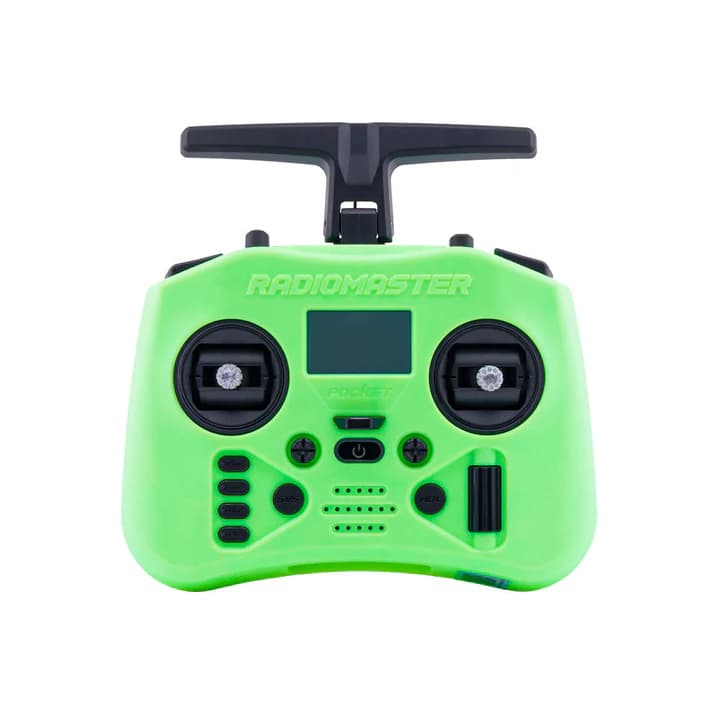

  • Available in seven vibrant colors: Slate Grey, Hot Pink, Cherry Red, Iceberg Blue, and Lemon Twist Yellow.
  • Pre-installed with EdgeTX firmware, offering extensive customization for model setup and mixes.
  • Equipped with X5 Hall effect gimbals as standard, upgradable to AG01 NANO CNC Hall effect gimbals.
  • Portable and lightweight design with removable stick ends and a foldable antenna for easy transport.
  • Supports 18650 batteries for long operating times (batteries not included).
  • Backlit 128*64 Monochrome LCD screen for a perfect balance of size and viewing functionality.
  • Built-in LED lights to visualize switch inputs and trim buttons.
  • External Nano-size module bay, compatible with RadioMaster Nano-size modules, TBS Nano Crossfire, and Nano Tracer.
  • USB-C direct charging with QC3 support.

Specifications

Physical Dimensions156.6 * 65.1 * 125.3mm (Folded)
156.6 * 73.1 * 154.8mm (Unfolded)
Weight288 grams
Operating Frequency2.400GHz-2.480GHz
Internal RF OptionsELRS 2.4GHz / CC2500 Multi-protocol
RF Power
  • CC2500: 20dBm max (100mW)
  • ELRS FCC: 24dBm max (250mW)
  • ELRS EU-LBT: 20dBm max (100mW)
Operating SystemEdgeTX
Operational Voltage6.6V – 8.4V DC
BatteryRequires 2x Li-ion 18650 batteries (Not included)
Control Distance> 2km @ 20dBm
Firmware Upgradevia USB or included SD card
Display128*64 Monochrome LCD with backlight
GimbalsX5 Hall-effect (Upgradable to AG01 NANO CNC)

Package Includes

  • 1 x RadioMaster Pocket Crush Radio Controller
  • 1 x Custom Carry Pouch
  • 1 x USB-C Cable
  • 1 x Screen Protector
  • 1 x Sticker Sheet
  • 4 x Low Tension Springs
  • 1 x User Manual
